孙延正《管理信息系统开发实践》设计方案成果报告

1、山东建筑大学课程 设计成 果报告题 目： 课 程: 院（部）： 专 业: 班 级: 学生姓名： 学 号: 指导教师: 完成日期:1. 系统功能简介本系统是毕业设计管理系统中教师、教研室主任用户的部分功能。系统 向教师用户提供了查看已经提交的题目、提交题目并且可以进行修改和删除功 能，向教研室主任提供了查询、审批的功能。使用 eclipse-jee-europa-winter-win32 +Jdk1.6+Tomcat6开发、测试。login.jsp LoginServletGraduatePrqje ctS e rvlet3.增加题冃-weicome.jsp1. 用户信息2. 査肴题国doGet

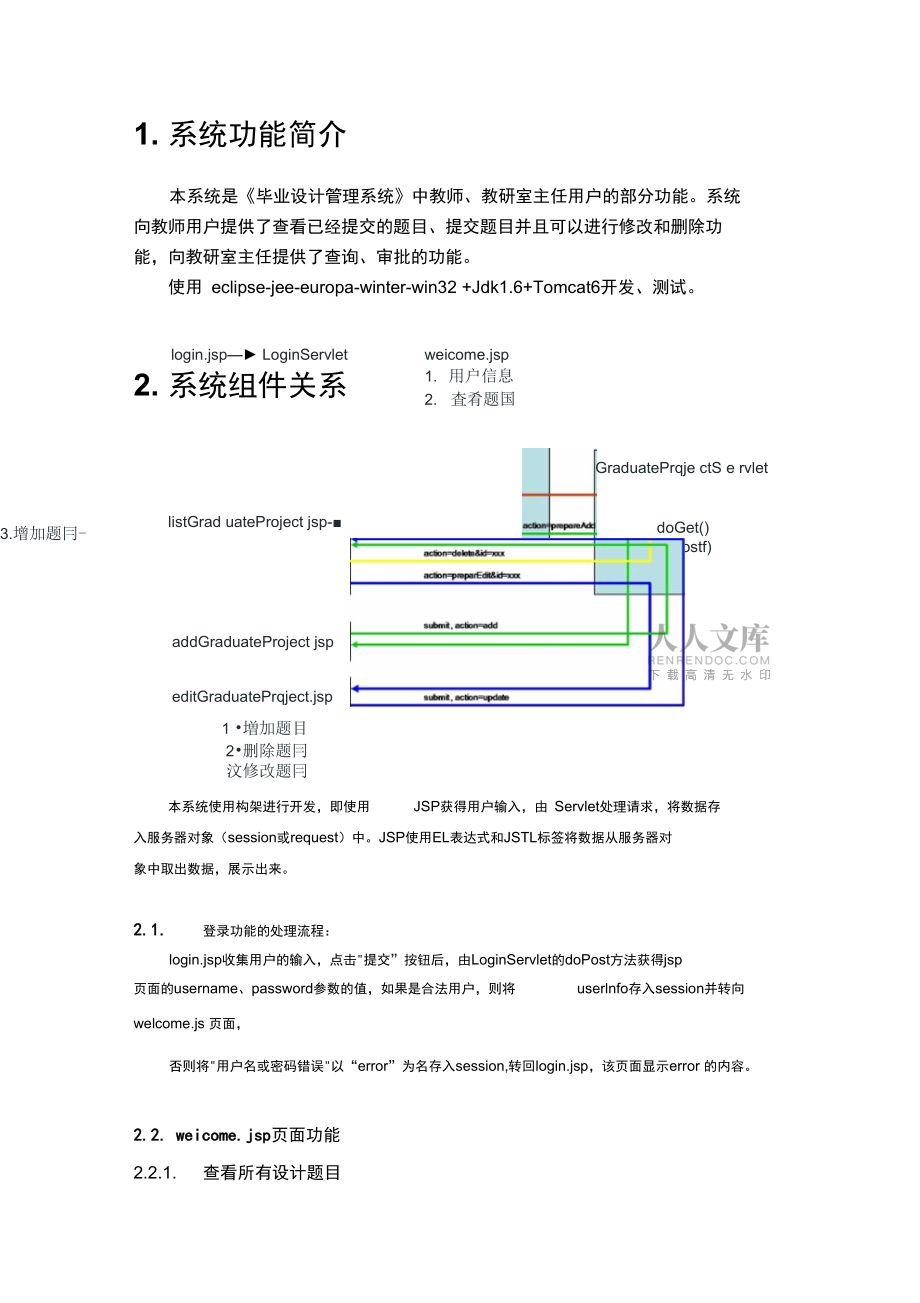

2、()doPostf)2. 系统组件关系listGrad uateProject jsp-addGraduateProject jspeditGraduatePrqject.jsp1 増加题目2删除题冃 汶修改题冃本系统使用构架进行开发，即使用JSP获得用户输入，由 Servlet处理请求，将数据存入服务器对象（session或request）中。JSP使用EL表达式和JSTL标签将数据从服务器对 象中取出数据，展示出来。2.1. 登录功能的处理流程：login.jsp收集用户的输入，点击"提交”按钮后，由LoginServlet的doPost方法获得jsp 页面的username、p

3、assword参数的值，如果是合法用户，则将userlnfo存入session并转向welcome.js 页面，否则将"用户名或密码错误"以“error”为名存入session,转回login.jsp，该页面显示error 的内容。2.2. weicome.jsp页面功能2.2.1. 查看所有设计题目221.1. 单击超链接“查看所有设计题目”，即请求GraduateProjectServlet的doGet 方法，由于没有其它参数，会直接执行该类的 list 方法。在 list 方法中， 通 过 GraduateProjectDao 获 得 所 有 的 设 计 题 目 对

4、象 的 集 合 ， 以 “ graduateProjects” 为 名 存 入 request ， 然 后 请 求 被 转 发 到 listGraduateProject.jsp。在该页面中，通过 JSTL的forEach标签遍历 graduateProjects的每个题目对象，依次将它们的所有属性显示出来。如 果某题目的指导教师与登录用户相同，且未被批准，则在后面列出“修 改、删除”超链接。. 单击“修改”链接，会请求 GraduateProjectServlet的doGet方法，同时 将参数 action=prepareEdit 和 id 传入。 doGet 方法解析参数后，

5、通过 GraduateProjectDao 获得参数 id 所代表的 GraduateProject 对象，以“ prepareObjects ” 为 名 存 入 request ， 然 后 请 求 被 送 到 editGraduateProject.jsp在该页面中，通过 JSTL的forEach标签遍历 prepareObjects的每个题目对象，同时一次将他们的属性显示出来。然后 老师根据自己的论文特点作相应的修改，最后有一个“提交”按钮，点 击即可以实现对其的修改。. 单击“删除”链接，会请求 GraduateProjectServlet的doGet方法，同时 将参数ac

6、tion=delete和id传入。doGet方法解析参数后，由Integer重新 定义并得到id，之后直接执行request的delete操作，即删除对应项目的 id。那么再次返回到listGraduateProject.jsp页面时，所删除的那个不会再 次出现。因为其id已经被delete掉了。. 单击“增加设计题目”链接 （参见 2.2.2）2.2.2. 增加设计题目. 浏览所有题单击“提交题目”，会请求GraduateProjectServlet的 doPost方法，将 参数action=add和id传入。doPost方法解析参数，通过GraduateProj

7、ectDao 获 得 id 所 对 应 的 所 有 的 题 目 对 象 的 集 合 。 之 后 返 回 到 addGraduateProject.jspK面，通过 JSTL 的 forEach 标签遍历 graduateProjects 的所有对象，依次将其属性显示出来。 之后用户就可以浏览所有的题目了2222审批题目审批是教研室主任特有的功能。单击“审批题目”时，会请求GraduateProjectServlet4DepartmentLeade的 doPost方法。3.源程序3.1. 实体类（省略方法），共XX个。1、Degree.javaackage cn. edu.sdjzu.xg11.

8、doma in;import java.io.Serializable;public final class Degree implements Comparable<Degree>,Serializableprivate In teger id;private String description ;private Str ing no;private Str ing remarks;2、Department.javapackage cn. edu.sdjzu.xg11.doma in;import java.io.Serializable;public final class

9、Department implements Comparable<Department>,Serializableprivate In teger id;private String description ;private Str ing no;private Str ing remarks;private School school;3、GraduateProject.javapackage cn .edu.sdjzu.xg11.doma in;import java.io.Serializable;import java.util.Collecti on;public fin

10、al class GraduateProject impleme nts Comparable<GraduateProject>,Serializableprivate static In teger n extID = 11;private In teger id;private String title;限选专业private Collect on<M ajor> limitedToMajor;类别private Projectcategory projectcategory;类型private ProjectType projectType;性质来源状态priva

11、te GraduateProjectStatus graduateProjectStatus;private Teacher teacher;初始化块this.id = n extID;n extlD+;System.out.pri ntln ("N");4、GraduateProjectStatus.javapackage cn. edu.sdjzu.xg11.doma in;import java.io.Serializable;public final classGraduateProjectStatus implementsComparable<Graduat

12、eProjectStatus>,Serializableprivate In teger id;private String description ;private Str ing no;private Str ing remarks;5、Majors.javapackage cn. edu.sdjzu.xg11.doma in;import java.io.Serializable;public final class Major implements Comparable<Major>,Serializableprivate In teger id;private St

13、ring description ;private Str ing no;private Str ing remarks;private Departme nt departme nt;6、ProjectCategory.javapackage cn. edu.sdjzu.xg11.doma in;import java.io.Serializable;public final class Projectcategory implements Comparable<ProjectCategory>,Serializableprivate In teger id;private St

14、ring description ;private Str ing no;private Str ing remarks;7、ProjectType.javapackage cn. edu.sdjzu.xg11.doma in;import java.io.Serializable;public final classProjectType implements Comparable<ProjectType>,Serializable private In teger id;private String description ;private Str ing no;private

15、 Str ing remarks;8、School.javapackage cn. edu.sdjzu.xg11.doma in;import java.io.Serializable;public final class School implements Comparable<School>,Serializableprivate In teger id;private String description ;private Str ing no;private Str ing remarks;9、Teacher.javapackage cn .edu.sdjzu.xg11.d

16、oma in;import java.io.Serializable;import java.util.Set;import cn. edu.sdjzu.xg11.doma in. authority.Actor;public final class Teacher exte nds Actor impleme nts Comparable<Teacher>,Serializable /*/private static final long serialVers ionUID = 1L;private In teger id;private String name;private

17、Title title;private Degree degree;private Departme nt departme nt;private Set<GraduateProject> projects;10、Title.javapackage cn. edu.sdjzu.xg11.doma in;import java.io.Serializable;public final class Titleimplements Comparable<Title>,Serializableprivate In teger id;private String descript

18、ion ;private Str ing no;private Str ing remarks;11、User In fo.javapackage cn .edu.sdjzu.xg11.doma in;import java.io.Serializable;import java.util.Date;public class UserI nfoimpleme nts Comparable<User In fo>,Serializableprivate In teger id;private String user name;private String password;priva

19、te Date log in Time;private Teacher teacher;12、Actory.javapackage cn. edu.sdjzu.xg11.doma in. authority;import java.util.Collection;public abstract classActor private Collecti on< ActorAssRole> actorAssRoles;13、ActorAssRole.java/package cn .edu.sdjzu.xg11.doma in .authority;import java.io.Seri

20、alizable;import java.util.Date;import util.lDService;public class ActorAssRole impleme nts Comparable<ActorAssRole>,Serializableprivate In teger id;private Actor actor;private Role role;private Date createTime;this.id = IDService.getID();14、AuthorityTest.javapackage cn .edu.sdjzu.xg11.doma in

21、.authority;import java.util.Collecti on;import java.util.Date;import java.util.HashSet;import cn. edu.sdjzu.xg11.dao.TeacherDao;import cn. edu.sdjzu.xg11.dao.authority.ActorAssRoleDao;import cn. edu.sdjzu.xg11.dao.authority.ResourceDao;import cn. edu.sdjzu.xg11.dao.authority.RoleDao;import cn. edu.s

22、djzu.xg11.doma in. Teacher;public class AuthorityTest public static void main(String args) Teacher t1 = TeacherDao.get In sta nce().getTeacher(1);Teacher t2 = TeacherDao.getI nsta nce().getTeacher(2);/Role r1 = RoleDao.get In sta nce().getRole(1);Role r2 = RoleDao.get In sta nce().getRole(2);/ActorA

23、ssRole ar1 = ActorAssRoleDao.getI nsta nce().getActorAssRole(1);ActorAssRole ar21 = ActorAssRoleDao.getI nsta nce().getActorAssRole(2);ActorAssRole ar22 = ActorAssRoleDao.getI nsta nce().getActorAssRole(3);Collectio n<ActorAssRole> t1R = new HashSet<ActorAssRole>();t1R.add(ar1);t1.setAct

24、orAssRoles(t1R);Collectio n<ActorAssRole> t2R = new HashSet<ActorAssRole>();t2R.add(ar21);t2R.add(ar22);t2.setActorAssRoles(t2R);打印角色Collectio n<ActorAssRole> t1r = t1.getActorAssRoles();for (ActorAssRole asr : t1r) System.out.pri ntl n(asr.getActor().getName()+"/"+asr.ge

25、tRole().getDescriptio n();Collectio n<ActorAssRole> t2r = t2.getActorAssRoles();for (ActorAssRole asr : t2r) System.out.pri ntl n(asr.getActor().getName()+"/"+asr.getRole().getDescriptio n(); Resource rs11 = ResourceDao.getI nsta nce().getResource(1);Resource rs12 = ResourceDao.getI

26、nsta nce().getResource(2);Resource rs21 = ResourceDao.get In sta nce().getResource(3);RoleAssResource rRs11 = new RoleAssResource(r1,rs11, new Date();RoleAssResource rRs12 = new RoleAssResource(r1,rs12, new Date();RoleAssResource rRs21 = new RoleAssResource(r2,rs21, new Date();角色1Collecti on <Rol

27、eAssResource> roleAssResource1 = new HashSet<RoleAssResource>();roleAssResource1.add(rRs11);roleAssResource1.add(rRs12);r1.setRoleAssResource(roleAssResource1);角色2Collecti on <RoleAssResource> roleAssResource2 = new HashSet<RoleAssResource>();roleAssResource2.add(rRs21);r2.setRo

28、leAssResource(roleAssResource2);System.out.println("/ 打印资源");for (ActorAssRole asr : t1r) System.out.pri ntl n(asr.getActor().getName()+"/"+asr.getRole().getDescriptio n();Collecti on <RoleAssResource> rRs = asr.getRole().getRoleAssResource();for (RoleAssResource roleAssRes

29、ource : rRs) System.out.pri nt("t");System.out.pr intln(rol eAssResource.getResource().getDescripti on() + "="+roleAssResource.getResource().getUrl();System.out.println("/ 打印资源 22");for (ActorAssRole asr : t2r) System.out.pri ntl n(asr.getActor().getName()+"/"

30、+asr.getRole().getDescriptio n();Collecti on <RoleAssResource> rRs = asr.getRole().getRoleAssResource(); for (RoleAssResource roleAssResource : rRs) System.out.pri nt("t");System.out.pr intln(rol eAssResource.getResource().getDescripti on() + "="+roleAssResource.getResource

31、().getUrl();System.out.println("/ 打印资源 3");Collectio n<ActorAssRole> t1ar = t2.getActorAssRoles();System.out.pri ntln (t1);for (ActorAssRole actorAssRole : t1ar) System.out.pri ntl n(actorAssRole.getRole();Collecti on <RoleAssResource> rrs = actorAssRole.getRole().getRoleAssRes

32、ource(); for (RoleAssResource roleAssResource : rrs) System.out.pri ntl n(roleAssResource.getResource();15、Resource.javapackage cn .edu.sdjzu.xg11.doma in .authority;import java.io.Serializable;import util.IDService;public class Resource impleme nts Comparable<Resource>,Serializable private st

33、atic int n extlD=1;private In teger id;private String description;private String url;private String no;this.id=IDService.getID();16、Role.javaackage cn. edu.sdjzu.xg11.doma in. authority;import java.io.Serializable;import java.util.Collecti on;import util.IDService;public final class Role implements

34、Comparable<Role>,Serializable private static int n extlD=1;private In teger id;private String description;private String no;private Collecti on <RoleAssResource> roleAssResource;17、RoleAssResource.javapackage cn .edu.sdjzu.xg11.doma in .authority;import java.io.Serializable;import java.u

35、til.Date;public class RoleAssResourceimpleme nts Comparable<RoleAssResource>,Serializableprivate static int n extID=1;private In teger id;private Role role;private Resource resource;private Date createTime;this.id = n extID;n extID+;3.2. Dao 类（略）3.3. Servlet 类，共 2 个。1、GraduateProjectServIepack

36、age acti on;import java.i o.I OExcepti on;import java.util.Collect ion;import java.util.HashSet;import javax.servlet.ServletExceptio n; import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResp on se;import javax.servlet.http.HttpSessi on;import cn. edu.sdjzu.xgll.dao.Gr

37、aduateProjectDao;import cn. edu.sdjzu.xg11.dao.GraduateProjectStatusDao;import cn. edu.sdjzu.xg11.dao.MajorDao;import cn. edu.sdjzu.xg11.dao.ProjectCategoryDao;import cn. edu.sdjzu.xg11.dao.ProjectTypeDao;import cn .edu.sdjzu.xg11.domai n.GraduateProject;import cn. edu.sdjzu.xg11.doma in. GraduatePr

38、ojectStatus;import cn. edu.sdjzu.xg11.doma in.M ajor;import cn. edu.sdjzu.xg11.doma in .Projectcategory;import cn. edu.sdjzu.xg11.doma in .ProjectType;import cn. edu.sdjzu.xg11.doma in. Teacher;import cn. edu.sdjzu.xg11.doma in. Userl nfo;* Servlet impleme ntati on class for Servlet: GraduateProject

39、Servlet*/public class GraduateProjectServlet exte nds javax.servlet.http.HttpServletimpleme nts javax.servlet.Servlet static fin al l ong serialVers ionUID = 1L;private Collect ion <ProjectCategory> categories;private Collect ion <ProjectType> types;private Collect ion<Major> major

40、s;public GraduateProjectServlet。super();protected void doPost(HttpServletRequest request,HttpServletResp onse resp on se) throws ServletExcepti on, I OExcepti on HttpSessi on sessi on = request.getSessi on();UserI nfo userI nfo = (UserI nfo) sessi on. getAttribute("userI nfo");Teacher teac

41、her = userI nfo.getTeacher();request.setCharacterE ncodi ng("UTF-8");String action = request.getParameter("act ion ”)；if ("add".equals(action) String projectTitle = request.getParameter("title");String category_id = request.getParameter("category");String

42、 type_id = request.getParameter("type");Strin g majors_ids = request.getParameterValues("majors"); System.out.pri ntln(m ajors_ids);ProjectCategory category = ProjectCategoryDao.getI nsta nce().getProjectCategory(new Integer(category id);ProjectType type = new ProjectTypeDao().ge

43、tProjectType( new In teger(type_id);Collectio n< Majorlimitedmajors = new HashSet<Major>(); if(majors_ids=n ull)MajorDao majorDao = MajorDao.getl nsta nce();如果用户未选择适用专业，则将该教师所属教研室的所有专业设置为适用专业”Collect ion<Major> allMajors = MajorDao.get In sta nce().getMajors();for (Major major : allMa

44、jors) if(major.getDepartme nt().equals(teacher.getDepartme nt() limitedmajors.add(major);elsefor (Stri ng majorld : majors_ids) Major major = MajorDao.get In sta nce().getMaj or(n ew In teger(majorld); limitedmajors.add(major);System.out.pri ntln( teacher);GraduateProjectStatussuppe ndStatusGraduate

45、ProjectStatusDao.getI nsta nce().getGraduateProjectStatus(1);GraduateProject projectcategory = new GraduateProject(projectTitle, limitedmajors, category, type, suppe ndStatus,teacher);GraduateProjectDao.get In sta nce().addGraduateProject(projectCategory);else if("update".equals(act ion)Sy

46、stem.out.pri ntln(action);String id_str = request.getParameter("id");GraduateProject project = GraduateProjectDao.getI nsta nce().getGraduateProject( newIn teger(id_str);String projectTitle = request.getParameter("title");String category_id = request.getParameter("category&q

47、uot;);String type_id = request.getParameter("type");Strin g majors_ids = request.getParameterValues("majors");Projectcategory category = ProjectCategoryDao.getI nsta nce().getProjectCategory( new In teger(category_id);ProjectType type = new ProjectTypeDao().getProjectType( new In

48、 teger( type_id);Collectio n< Majorlimitedmajors = new HashSet<Major>();for (Stri ng majorld : majors_ids) Major major = MajorDao.get In sta nce().getMaj or(n ew In teger(majorld); limitedmajors.add(major);project.setTitle(projectTitle);project.setProjectCategory(category);project.setProjec

49、tType(type);project.setLimitedToMajor(limitedmajors);GraduateProjectDao.get In sta nce().updateGraduateProject(project);this .li st(request, resp on se);protected void doGet(HttpServletRequest request,HttpServletResp onse resp on se) throws ServletExcepti on, I OExcepti on HttpSessi on sessi on = re

50、quest.getSessi on();String action = request.getParameter("act ion ”)；if ("delete".equals(action) /刪除String id_s = request.getParameter("id");In teger id = new In teger(id_s);this.delete(request, resp on se, id); else if ("prepareAdd".equals(act ion) prepareObjects(

51、request);/ jsp request.getRequestDispatcher("/dPages/addGraduateProject.jsp").forward(request, resp on se);return;else if("prepareEdit".equals(act ion)prepareObjects(request);String id = request.getParameter("id");GraduateProjectgraduateProject=GraduateProjectDao.getI n

52、sta nce().getGraduateProject( new In teger(id);request.setAttribute("graduateProject", graduateProject);/ jsp request.getRequestDispatcher("/dPages/editGraduateProject.jsp").forward(request, resp on se);return;Iist(request, resp on se);private void prepareObjects(HttpServletReque

53、st request) categories = ProjectCategoryDao.getl nsta nce().getProjectCategorys();types = new ProjectTypeDao().getProjectTypes();majors = MajorDao.get In sta nce().getMajors();/保存到session中request.setAttribute("categories", categories);request.setAttribute("types", types); request

54、.setAttribute("majors", majors);private void delete(HttpServletRequest request,HttpServletResp onse resp on se, In teger id) throws ServletExcepti on, IOExcepti on System.out.println("delete id=" + id);Collect ion< GraduateProject> projects = GraduateProjectDao.get In sta n

55、ce().getGraduateProjects();projects.remove( new GraduateProject(id);private void list(HttpServletRequest request, HttpServletResp onse resp on se)throws ServletExcepti on, I OExcepti on Collect ion< GraduateProject> projects =GraduateProjectDao.get In sta nce().getGraduateProjects();System.out

56、.pri ntln( projects.size();int coun ter=1;final Stri ng TAB="t"for (GraduateProject graduateProject : projects) System.out.pri nt(co un ter+)+TAB);System.out.pri nt(graduateProject.getTitle()+TAB);System.out.pri nt(graduateProject.getProjectCategory().getDescriptio n()+TAB);System.out.pri

57、nt(graduateProject.getProjectType().getDescripti on()+TAB);System.out.pri nt(graduateProject.getTeacher().getName()+TAB);System.out.pri ntl n();HttpSessi on sessi on = request.getSessi on();sessi on. setAttribute("projects", projects);request.getRequestDispatcher(respon se.e ncodeURL("

58、;./dPages/listGraduateProject.jsp").forward(request, resp on se);2、LoginServlet.javapackage logi n;import java.i o.I OExcepti on;import java.util.Collect ion;import javax.servlet.RequestDispatcher;import javax.servlet.ServletExceptio n;import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResp on se;import javax.servlet.http.HttpSessi on;import cn. edu.sdjzu.xg11.dao.Userl nfoDao;import cn. edu.sdjzu.xg11.doma in. Userl nfo
