1、“ Mechanical Design ” （机械设计双语教学大纲 ）1. Course Code: TBD by the School or University2. Schools Offering the Course: School of Mechanical and Automotive Engineering3. Course Hour: 6064 Hours; 4 CPs4. Course Target Participants: Third-year undergraduates in Specialty of Mechanical Engineering and Mechat

2、ronics Engineering5. Course Type: Foundation course of the discipline （Compulsory）6. Teaching Mode: Multimedia + Bilingual teaching7. Course Features and Aims:The objective of this course is to provide the concepts, procedures, data, and decision analysis techniques necessary to design machine eleme

3、nts commonly found in mechanical devices and systems. Students completing a course of study using this course should be able to execute original designs for machine elements and integrate the elements into a system composed of several elements.This process requires a consideration of the performance

4、 requirements of an individual element and of the interfaces between elementsas they work together to form a system. For example, a gear must be designed to transmit power at a given speed. The design must specify the number of teeth, pitch, tooth form, face width, pitch diameter, material, and meth

5、od of heat treatment. But the gear design also affects, and is affected by, the mating gear, the shaft carrying the gear, and the environment in which it is to operate. Furthermore, the shaft must be supported by bearings, which must be contained in a housing. Thus, the designer should keep the comp

6、lete system in mind while designing each individual element. This course will help the student approach design problems in this way.This course is designed for students for mechanical engineering or so. The emphasis is on the use of readily available materials and processesand appropriate design app

7、roachesto achieve a safe, efficient design. It is assumedthat the person using the course will be the designer, that is, the person responsible for determining the configuration of a machine or a part of a machine. Where practical, all design equations, data, and procedures needed to make design dec

8、isions are specified.8. Course Contents（ 教学内容 ）:1 Belt Drives and Chain Drives1- 1 Objectives of This Chapter1- 2 Types of Belt Drives1- 3 V -Belt Drives1- 4 V-Belt Drive Design1- 5 Chain Drives1- 6 Design of Chain Drives2 Spur Gear Design2- 1 Objectives of This Chapter2- 2 Concepts from Previous Ch

9、apters2- 3 Forces on Gear Teeth2- 4 Gear Manufacture2- 5 Gear Quality2- 6 Allowable Stress Numbers2- 7 Gear Materials2- 8 Stresses in Gear Teeth2- 9 Selection of Gear Material Based on Bending Stress2- 10 Pitting Resistance of Gear Teeth2- 11 Selection of Gear Material Based on Contact Stress2-12 De

10、sign of Spur Gears2-13 Gear Design for the Metric Module System3 Helical Gears, Bevel Gears, and Worrngearing3- 1 Objectives of This Chapter3- 2 Forces on Helical Gear Teeth3- 3 Stresses in Helical Gear Teeth3- 4 Pitting Resistance for Helical Gear Teeth3- 5 Design of Helical Gears3- 6 Forces on Str

11、aight Bevel Gears3- 7 Bearing Forces on Shafts Carrying Bevel Gears3- 8 Bending Moments on Shafts Carrying Bevel Gears3- 9 Stresses in Straight Bevel Gear Teeth3- 10 Design of Bevel Gears for Pitting Resistance3- 11 Forces, Friction, and Efficiency in Wormgear Sets3-12 Stress in Wormgear Teeth3-13 S

12、urface Durability of Wormgear Drives4 Keys, Couplings, and Seals4- 1 Objectives of This Chapter4- 2 Keys4- 3 Materials for Keys4- 4 Stress Analysis to Determine Key Length4- 5 Splines4- 6 Other Methods of Fastening Elements to Shafts4- 7 Couplings4- 8 Universal Joints4- 9 Retaining Rings and Other M

13、eans of Axial Location4- 10 Types of Seals4- 11 Seal Materials5 Shaft Design5- 1 Objectives of This Chapter5- 2 Shaft Design Procedure5- 3 Forces Exerted on Shafts by Mach ine Eleme nts5- 4 Stress Concen tratio ns in Shafts5- 5 Desig n Stresses for Shafts5- 6 Shafts in Bending and Torsion Only5- 7 S

14、haft Desig n Example5- 8 Recomme nded Basic Sizes for Shafts5- 9 Additi onal Desig n Examples5- 10 Spreadsheet Aid for Shaft Desig n6 Rolli ng Con tact Beari ngs6- 1 Objectives of This Chapter6- 2 Types of Rolli ng Con tact Beari ngs6- 3 Thrust Beari ngs6- 4 Moun ted Beari ngs6- 5 Beari ng Materials

15、6- 6 Load/Life Relatio nship6- 7 Beari ng Manu facturers' Data6- 8 Desig n Life6- 9 Beari ng Selecti on: Radial Loads Only6- 10 Beari ng Select ion: Radial and Thrust Loads Comb ined6-11 Mou nting of Beari ngs6-12 Tapered Roller Beari ngs6-13 Practical Considerations in the Application of Bearin

16、gs6-14 Importa nee of Oil Film Thick ness in Beari ngs6- 15 Life Predicti on un der Varying Loads7 Plain Surface Beari ngs7- 1 Objectives of This Chapter7- 2 The Beari ng Desig n Task7- 3 Beari ng Parameter； ln/p7- 4 Beari ng Materials7- 5 Desig n of Boun dary-lubricated Beari ngs7- 6 Full-Film Hydr

17、od yn amic Beari ngs7- 7 Desig n of Full-Film Hydrod yn amically Lubricated Beari ngs7- 8 Practical Con siderati ons for Plain Surface Beari ngs7- 9 Hydrostatic Beari ngs8 Power Screws and Ball Screws8- 1 Objectives of This Chapter8- 2 Power Screws8- 3 Ball Screws9 Faste ners9- 1 Objectives of This

18、Chapter9- 2 Other Types of Faste ners and Accessories9- 3 Bolt Materials and Stre ngth9-4 Thread Desig natio ns9-5 Performa nee of Bolted Joints9-6 Other Mea ns of Faste ning9- 7 Ecce ntrically Loaded Bolted Joints10 Motion Con trol: Clutches and Brakes10- 1 Objectives of This Chapter10- 2 Descripti

19、 ons of Clutches and Brakes10- 3 Types of Fricti on Clutches and Brakes10-4 Performa nee Parameters10-5 Time Required to Accelerate a Load10-6 In ertia of a System Referred to the Clutch Shaft Speed10-7 Effective In ertia for Bodies Movi ng Lin early10-8 En ergy Absorpti on: Heat-Dissipatio n Requir

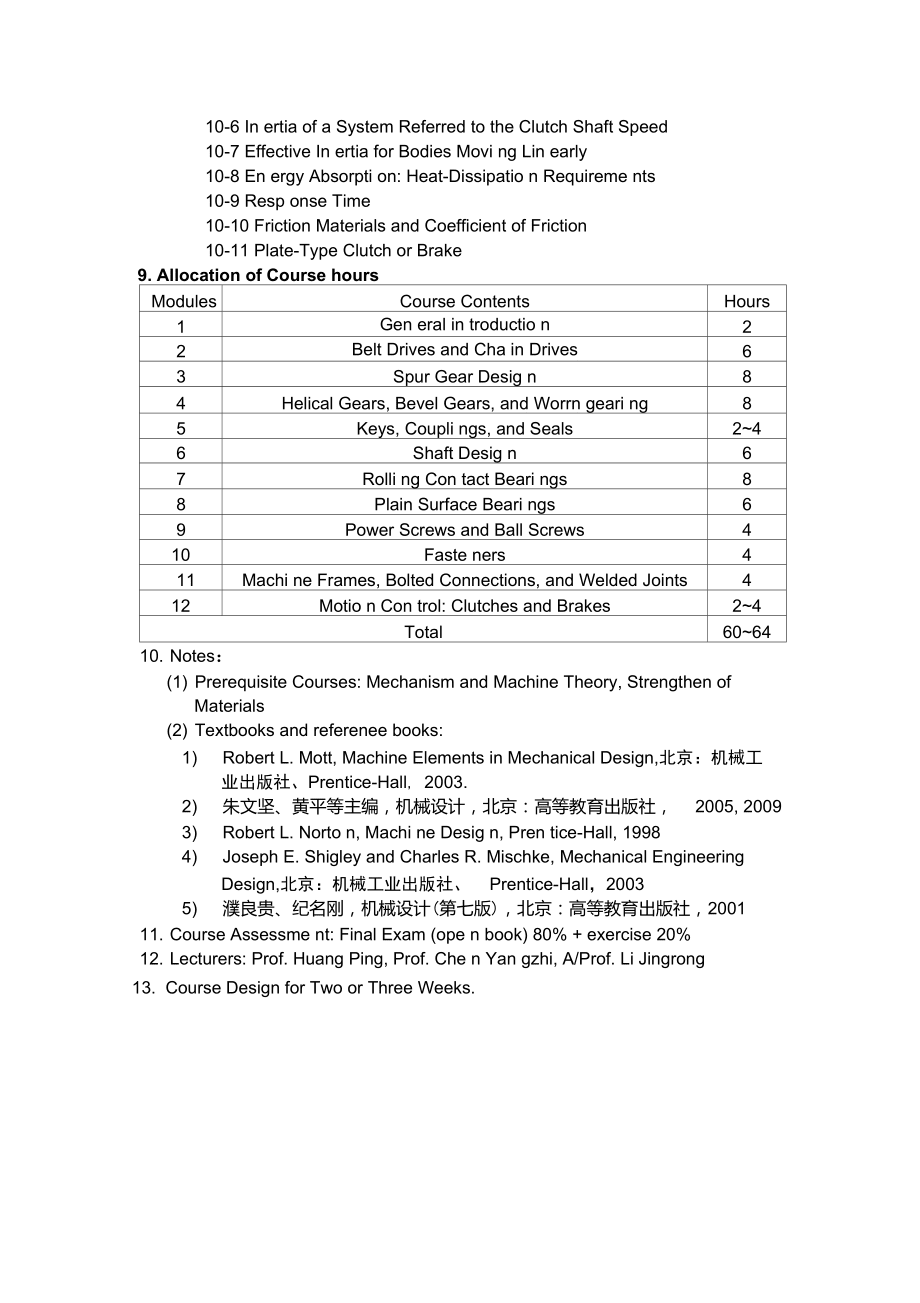

20、eme nts10-9 Resp onse Time10-10 Friction Materials and Coefficient of Friction10-11 Plate-Type Clutch or Brake9. Allocation of Course hoursModulesCourse ContentsHours1Gen eral in troductio n22Belt Drives and Cha in Drives63Spur Gear Desig n84Helical Gears, Bevel Gears, and Worrn geari ng85Keys, Coupli ngs, and Seals246Shaft Desig n67Rolli ng Con tact Beari ngs88Plain Surface Beari ngs69Power Screws and Ball Screws410Faste ners411Machi ne Frames, Bolted Connections, and Welded Jo
